The floating anti-pollution trap has been designed taking into consideration the need for effective collection of enormous quantities of litter-seaweed from the surface of the sea.

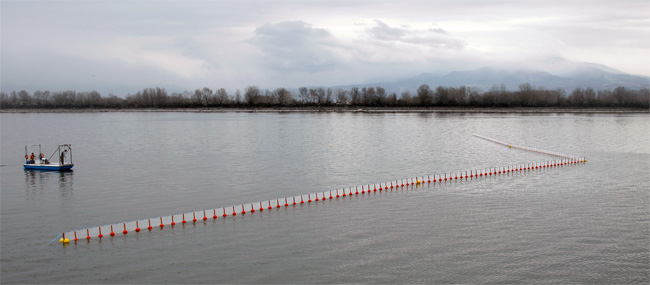

i) a stable trap, which is permanently installed in an aquatic environment and by exploiting the usual local weather conditions, we lead the litter to certain points of concentration.
ii) a mobile trap, which is towed by two simple marine means, literally sweeping large beneficial surface, with possibility of concentration of many cubic meters of litter in the floating anti-pollution buckets that are adapted in the back part of the trap.
Constructional and application sample of the trawling antipollution trap will be available soon. You can find application sample of the stable antipollution trap in “applications”.
Technical Data
Permanent Antipollution Trap
Technical Parts
Characteristics - Observations
Forced litter direction
One or more parts of the floating boom type Okean-Net, Okean Oil-Net
Installed to the appropriate direction according to the local meteorological characteristics
Enclosing gate
Especially constructed floating boom part
Simple or automatic closure of the gate according to wind blowing direction
Capacity
Coverage in m2
Dependable on pollution level, the floating boom length and the installation region
Litter collection
By floating and land means
Simple and fast collection due to high pollutants concentration
Trawling Antipollution Trap
Okean - MTrap 30/7
Okean - MTrap 50/10
Okean - MTrap 100/15
Characteristics - Observations
Debris Boom Okean-Net 20/150
2*30m
2*50m
2*100m
Pollution concentration by two parts of floating boom
Beam
30m - 45m
50m - 75m
100m - 140m
It is referred to the beam created from the trawling angle of one or two means respectively
Floating bins capacity
7m3
10m3
15m3
Adjusted independently
Additional Information
Permanent Antipollution Trap Advantages
Simple and economical method of pollution management
Collection of enormous litter quantities
Extremely high endurance in weather condition and pollutant loads
Low maintenance cost
Trawling Trap Advantages
High sweeping speed per square meters
The widest trawling beam
Extremely high endurance in weather condition and pollutant loads
Low resistance giving the ability of trawling by compatible and medium power boats
Immediate floating bin change
Floating bins variety depending on pollution loads
